GVS Commercial Central Vacuum Series

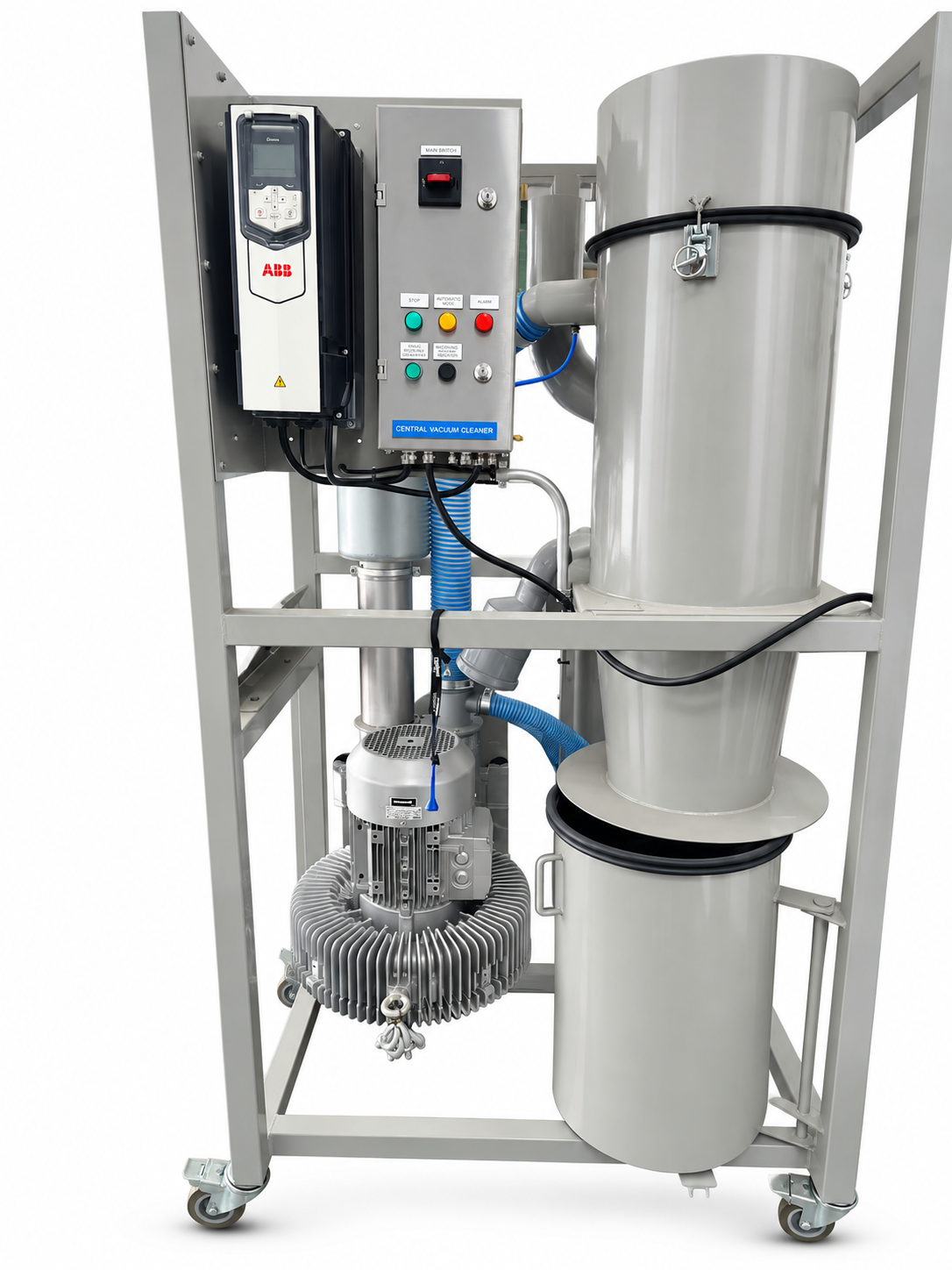

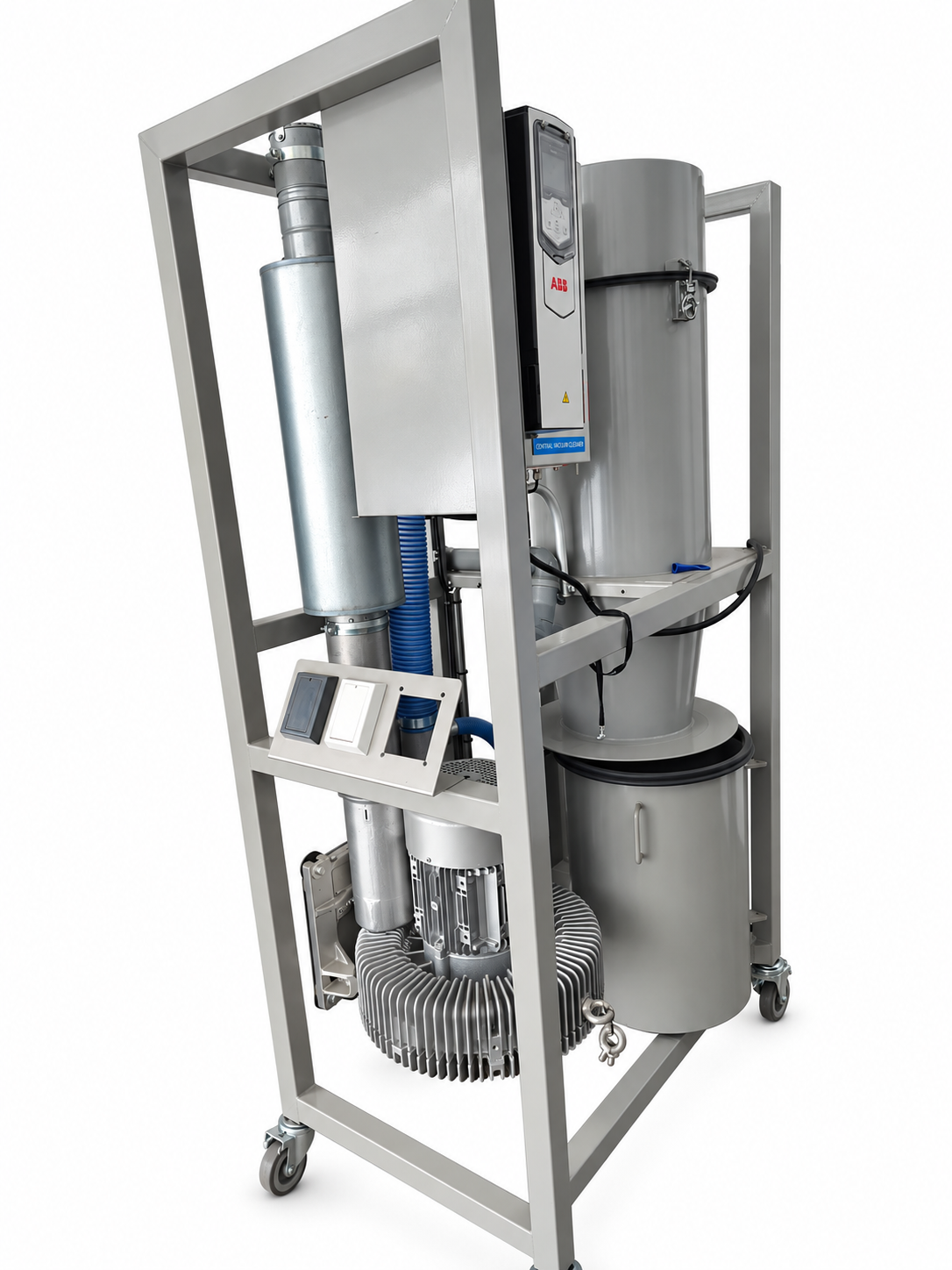

Commercial Central Vacuum System
GVS0980 / GVS0990
GVS0980 / GVS0990 commercial central vacuum units support up to 3 / 6 suction inlets at once, respectively. Catalogue maximum airflow is 610 / 1240 m³/h, with variable-frequency control, EU7 filtration and compressed-air filter cleaning.
- Up to 3 or 6 suction inlets used simultaneously, depending on model
- Variable-frequency control with BACnet, Modbus, N2 and FLN fieldbus support
- 8 m² EU7 filter; self-cleaning requires 5 bar compressed air
- Pipe network, suction inlets and cleaning accessories, with unit exhaust routed outdoors
CFM · inH₂O · in / ft · ft² · lb · US gal / US pt/day · °F
English defaults to North American units. Choose metric or L/s to suit your project. Your choice for this language is remembered in this browser.
Conversions retain the original test conditions. Voltage, frequency and certification are model-specific; confirm the supply configuration for your market.
Specifications
| Specifications | GVS0980 | GVS0990 |
|---|---|---|
| Motor power (60 Hz) | 6.3 kW | 14.5 kW |
| Rated current (full power) | 13.3 A | 29 A |
| Maximum suction inlets used simultaneously | 3 | 6 |
| Unit outlet diameter | Ø3.94 inOriginal: Ø100 mm | Ø4.92 inOriginal: Ø125 mm |
| Maximum pipe length | 410.1 ftOriginal: 125 m | 492.1 ftOriginal: 150 m |
| Voltage (three-phase) | 3~440 V | 3~460 V |
| Required fuse (slow-blow) | 20 A | 60 A |
| Required socket rating | 40 A | 60 A |
| Maximum airflow | 359 CFMOriginal: 610 m³/h | 729.8 CFMOriginal: 1240 m³/h |
| Maximum pressure | 124.45 inH₂OOriginal: 310 mbar (233 mmHg) | 168.61 inH₂OOriginal: 420 mbar (316 mmHg) |
| Noise level (measured under laboratory conditions) | 72 dB(A) | 75 dB(A) |
| Total weight | 553.36 lbOriginal: 251 kg | 903.9 lbOriginal: 410 kg |
Product parameters
- Unit inlet diameterØ4.25 inOriginal: Ø108 mm
- IP protection ratingIP54
- Volt-free alarm states (on/off/fault)ON / OFF / FAULT
- Supported fieldbus protocolsBACnet / Modbus / N2 / FLN
- Motor power control (variable-frequency drive)VFD
- Purge valves (at main-pipe ends)1–8
- Filter area86.1 ft²Original: 8 m²
- Filter class (brochure designation)EU7
- Compressed air for filter self-cleaning (pressure pulse)5 bar
- Width × height × depth44.49 × 78.35 × 27.56 inOriginal: 1130 × 1990 × 700 mm
- Service clearance (front/above)800 mm / 150 mm
- Heat dissipation (% of rated power)20%
- Dust container capacity21.13 US galOriginal: 80 L
- Dust bag capacity (heavy-duty)26.42–39.63 US galOriginal: 100–150 L
- System componentsVacuum unit, pipe network, outdoor exhaust pipe, suction inlets, purge/flush valves and cleaning kit; select the configuration for the project.
- Volt-free alarm statesOn / off / fault; shown as ON / OFF / FAULT in the specification table.
- Motor controlVariable-frequency drive controls motor power; BACnet, Modbus, N2 and FLN are supported.
- Pipe purgingPurge valves at the ends of each 76/108 mm main pipe; the brochure lists 1–8 valves.
- Filter self-cleaningPressure-pulse cleaning requires 5 bar compressed air.
- Cleaning accessoriesHose, handle, extension and cleaning heads; filter packs and dust bags are available.
- Water pickup accessoryWater pickup uses a separate water separator; the separator is a separate accessory.
